2 Methods to Create a Chart in an Excel Chart Sheet

If you want to create a chart in an Excel chart sheet, you can use the 2 methods in this article.

You will certainly create a chart for a range in Excel. Sometimes instead of putting the chart in the same worksheet, you need to input the chart into a new chart sheet. Now you can follow the steps of the 2 methods below.

Method 1: Insert a Chart Sheet

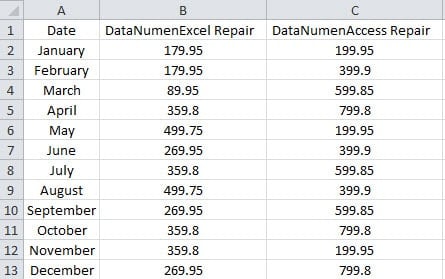

Now you need to create a chart for the sales volume.An Example for Chart Sheet

  1. Right click any of a sheet tab in the workbook.
  2. And then choose the option “Insert” in the menu.Insert
  3. Next you will see the “Insert” window. Here choose the option “Chart” in the window.
  4. And then click “OK”.Choose Chart

Thus, a new chart sheet has been created in the workbook.

  1. In the chart sheet, click the button “Select Data” in the toolbar. And then you will see the window “Select Data Source”.Select Data
  2. Now come back to the worksheet that contains the sales volume.
  3. Select the range that you need. Thus, the reference will appear in the text box in the “Select Data Source” dialog.Chart Data Range
  4. After that, click the button “OK”. Thus, the chart will appear in the chart sheet.

The Chart in Chart Sheet

Method 2: Move the Chart to a Chart Sheet

In this method, you can create a chart in the worksheet at first and then move it to a new chart sheet.

  1. Create a chart in the current worksheet.Chart in Worksheet
  2. Right click the chart.
  3. And then choose the option “Move Chart” in the menu.Move Chart
  4. In the “Move Chart” window, choose the option “New Sheet”. And here change the chart name if you need.
  5. And then click the button “OK”.New Chart

Now, you have moved the chart into a new chart sheet in the workbook.

Move Chart into New Sheet

A Comparison of the Two Methods

In the table below, we have listed the advantages and disadvantages of the two methods.

Comparison Insert a Chart Sheet Move the Chart to a Chart Sheet
Advantages 1.      Insert a new chart sheet can give you more flexibility on choosing the original data.

2.      You can move the chart to other worksheet if you need.

1.      If you have already created a chart in the worksheet, you can use this method quickly.

2.      You can edit the chart before moving to a new sheet. Thus, you can refer to the original data easily in the same worksheet.

3.      You can also move the chart to other worksheet.

Disadvantages 1.      Compared with the second method, this method is more complicated because you need to choose data in the original worksheet.

2.      If you need to refer to the original data, you need to switch between the two sheets.

1.      If you still need to edit it in the chart sheet, you will find it irritating to refer to the original worksheet.

Therefore, the next time if you need to create a chart in a chart sheet, you can choose either of the two methods according to your need.
